Temporary buildings

Create extra space with an upper floor!

Mezzanine: Creating maximum space

The Mezzanine from Neptunus is a versatile deck flooring system, which can create extra space inside structures that have a permissible ceiling height.

As well as making optimum use of the available space, the mezzanine can provide an ideal viewing platform and enhance the interior ambience.

With endless possibilities including VIP reception areas, meeting rooms, restaurants and lounges, the mezzanine not only increases floor space but also creates a striking first impression.



Technical Information
The Mezzanine is available in various combinations and heights, please call us for help and more information.

Mezzanine I (Steel)

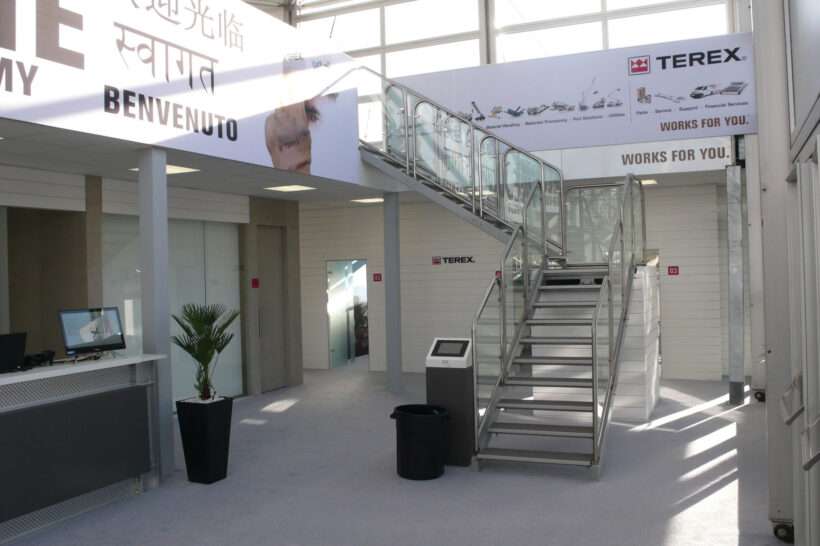

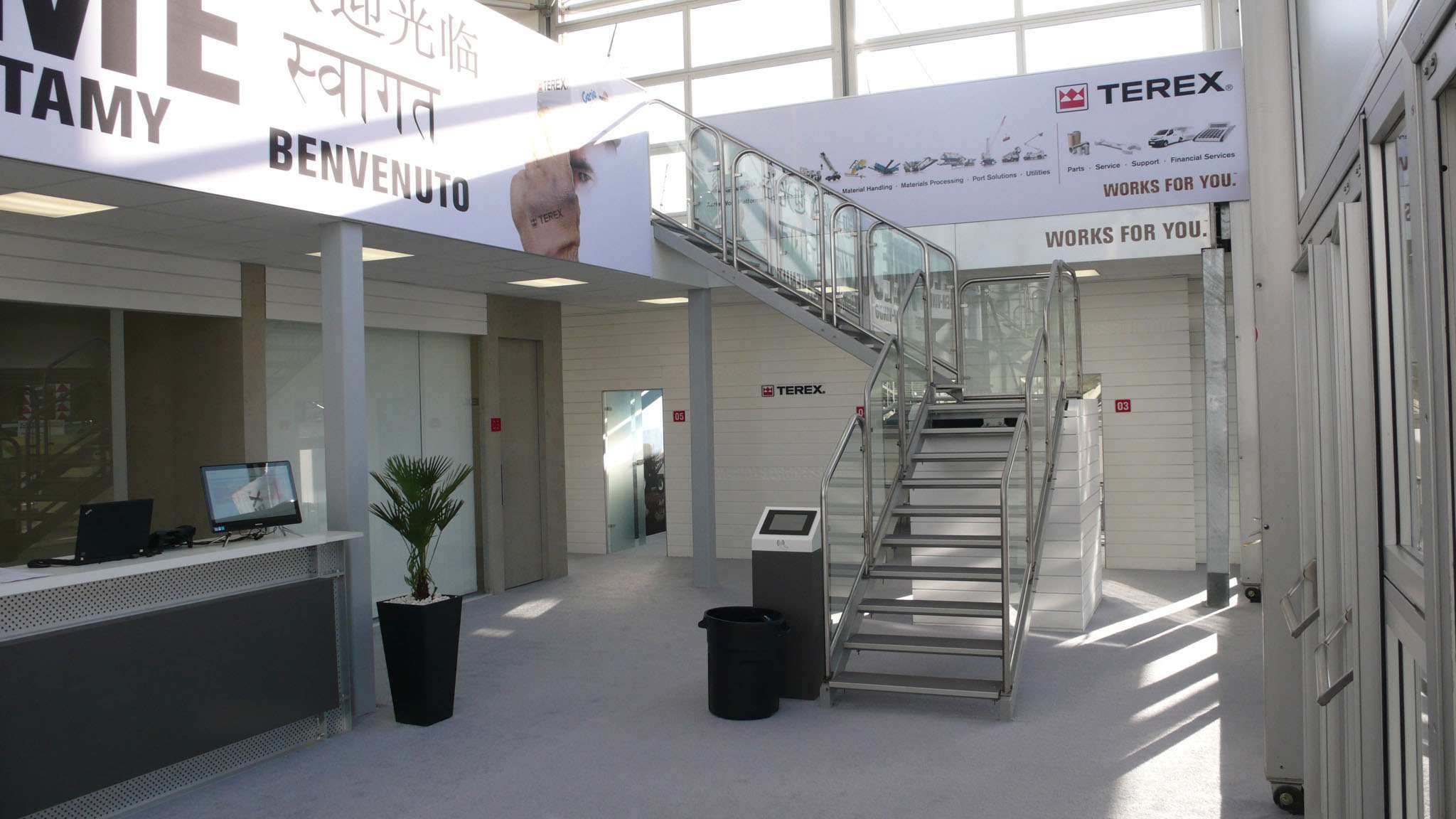

The Mezzanine consists of steel beams and wooden floors, steel stairs and stainless steel balustrade frames fitted with safety glass.

• The Mezzanine I (Steel) floors have columns on the ground floor.
• Height 3.5m or 4.6m.
• Width in 5-metre, 7.5-metre or 10-metre modules (the length is unlimited in 5-metre modules).
• The maximum load per m² is 350 kilos, in accordance with DIN4112.

TECHNICAL SPECIFICATIONS Mezzanine I

Mezzanine III (Aluminium)

The Mezzanine III consists of aluminium beams with Neptunus cassette floor.  The balustrade includes a continuous stainless steel railing fitted with safety glass. This mezzanine floor can be free standing at the perimeter – supported by the columns of the building and with minimum columns providing support on the ground floor we can maximise the use of space.

• The Alu Mezzanine can be installed in any accommodation.
• Height 3.5m or 4.6m.
• Width modules of 5m, 7.5m or 10m (the length is unlimited in 5-metre modules).
• Load-bearing capacity of 500 k/m2 in accordance with EN13782.
• Ideal for heavier loads.

TECHNICAL SPECIFICATIONS Mezzanine III

Mezzanine II

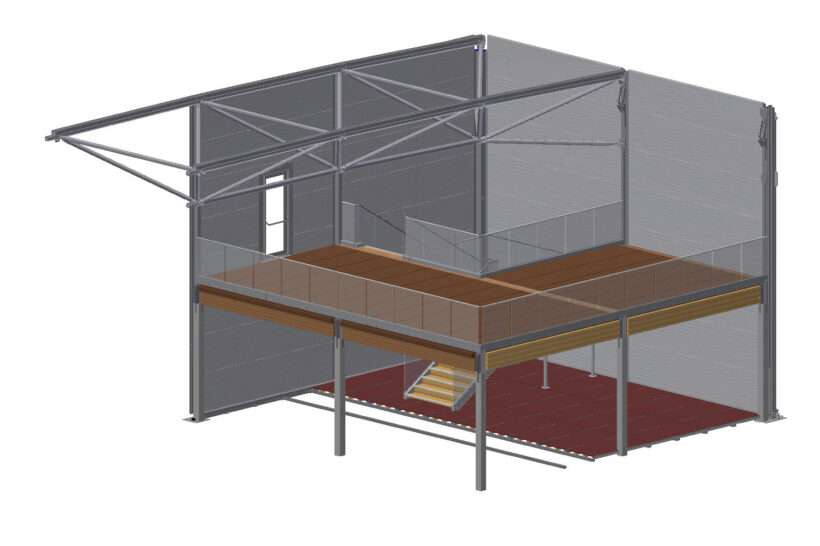

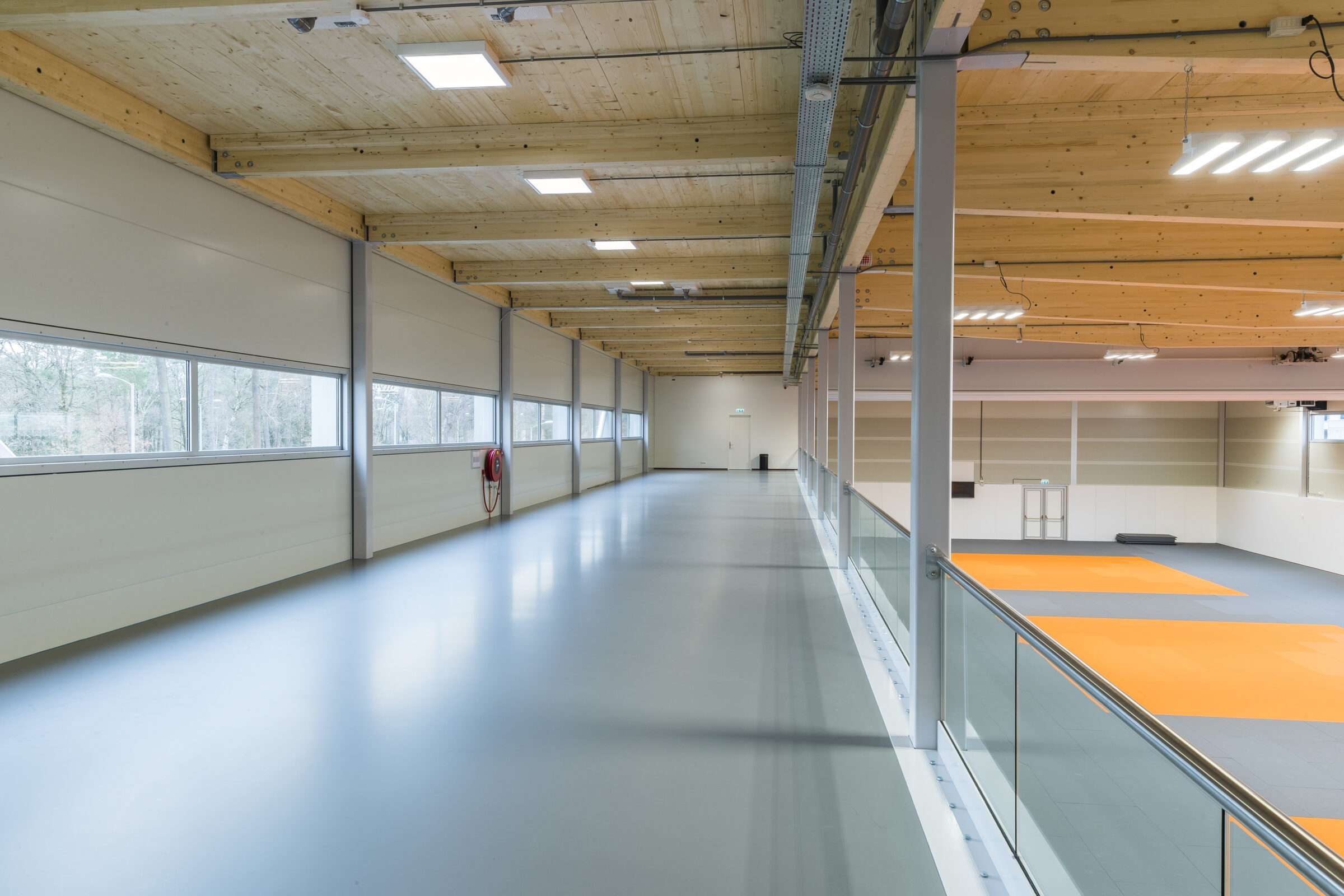

The Mezzanine II comprises a construction of steel supports finished with laminated wooden beams and solid 160 mm floorboards. The height is 4.6 metres finished floor level, in widths of 5, 6, 7.5 or 10 metres. The length of the Mezzanine is limitless and can be extended in increments of 5 metres. The maximum loading on the Mezzanine floor is 750 kg per square metre, in accordance with BS EN13782.

• The Mezzanine II can be installed in any accommodation.
• Height 4.6m.
• Width modules of 5m, 5m, 7.5m or 10m (the length is unlimited in 5-metre modules).
• Load-bearing capacity of 750 kg/m2 in accordance with EN13782.
• Ideal for heavier loads.

TECHNICAL SPECIFICATIONS Mezzanine II

With endless possibilities including VIP reception areas, meeting rooms, restaurants and lounges, the mezzanine not only increases floor space but also creates a striking first impression.

If you would like further information, please contact one of our advisers.
